The studio questions conventional orientations, organizations, and architectural roles within a generic cartesian system. In the “last house” portion of this studio, we have been given a site—Graceland cemetery in Chicago—and program selected from common cemetery program types.

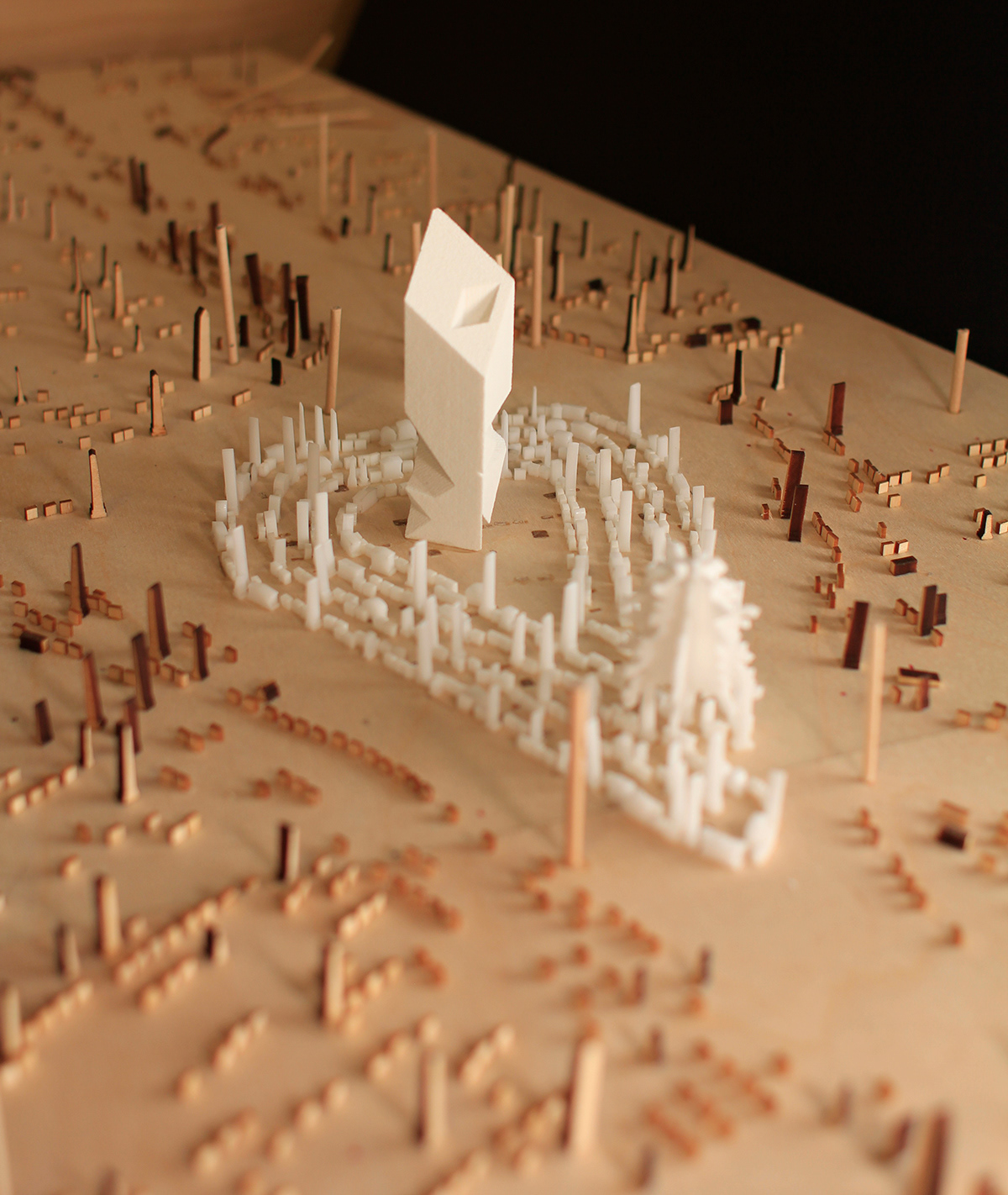

The object developed through abstract formal exercises and anamorphic projection has been pressed to serve as a mausoleum/columbarium, and the associate program is used to position my viewer/occupant at the focal point for the privileged view of the form. A labyrinth composed of the relocated memorials and headstones from the site forces the visitor along a path of contemplation to experience 360˚ views of the object before arriving at the privileged focal point. The mausoleum is imagined to have been aggregated over time, each generation adding a mausoleum on top of the previous structure, always projected from the same point.
![](https://cdn.myportfolio.com/206b6f8e-c002-498f-849c-9b26de9e6ddb/21bfa68e-41c0-4a17-843c-992a12931b1f_rw_1200.jpg?h=fea8262b30a5503aa5997bc293e32a34)

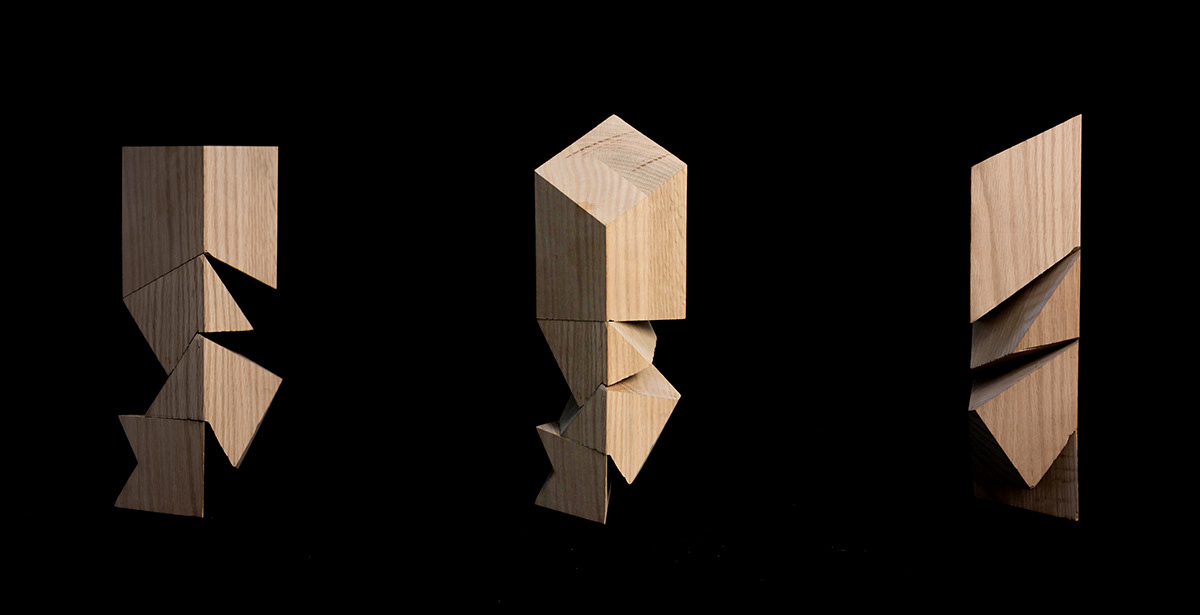

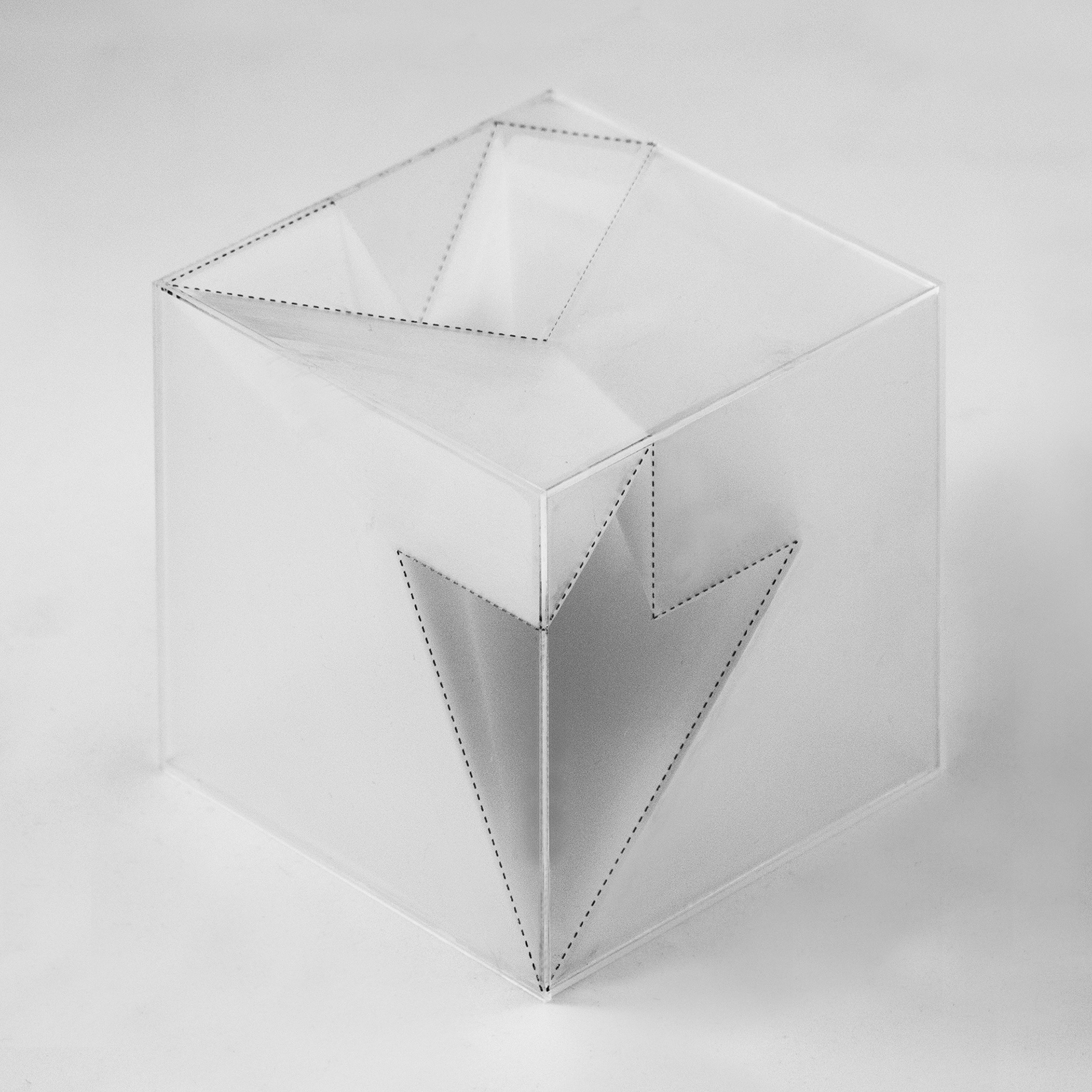

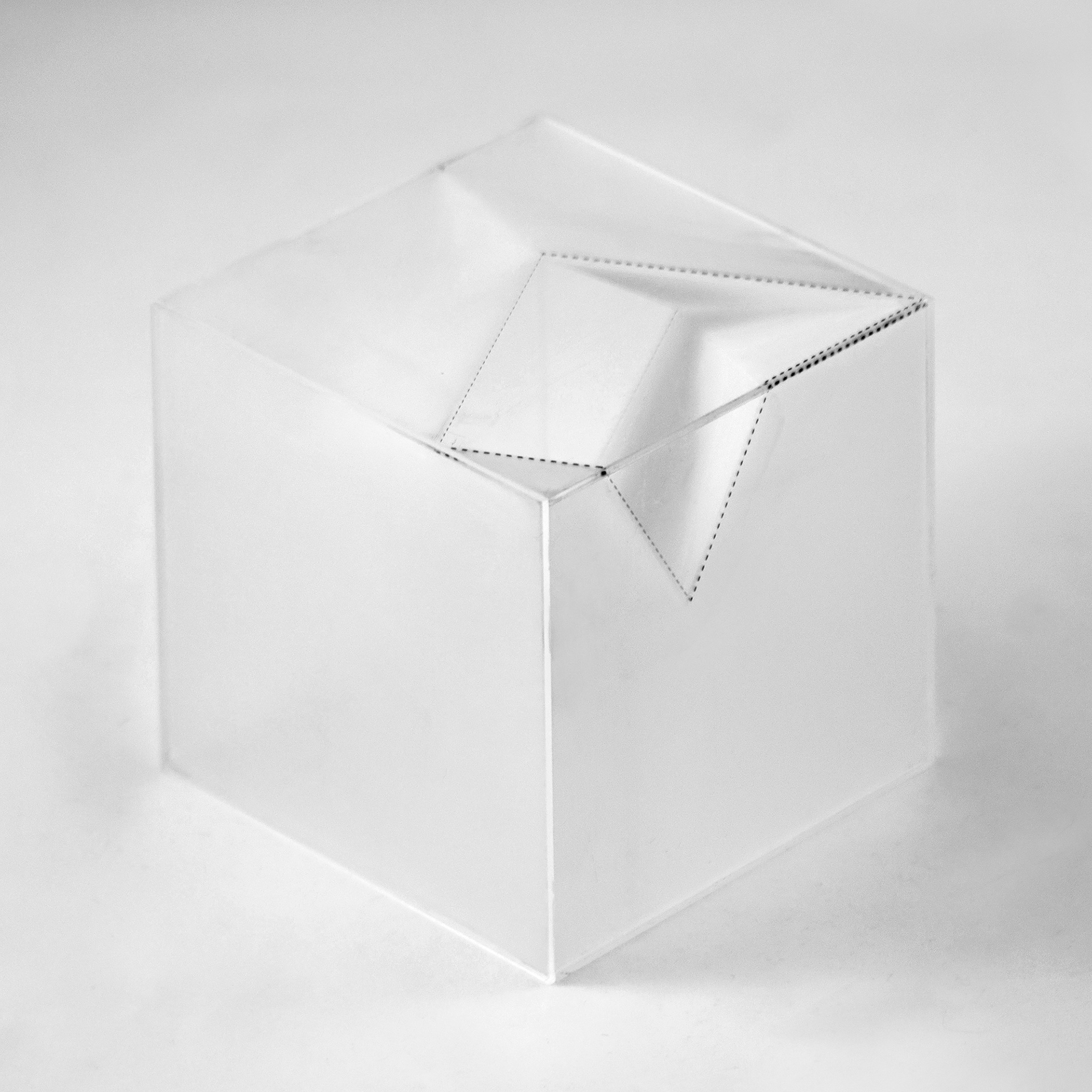

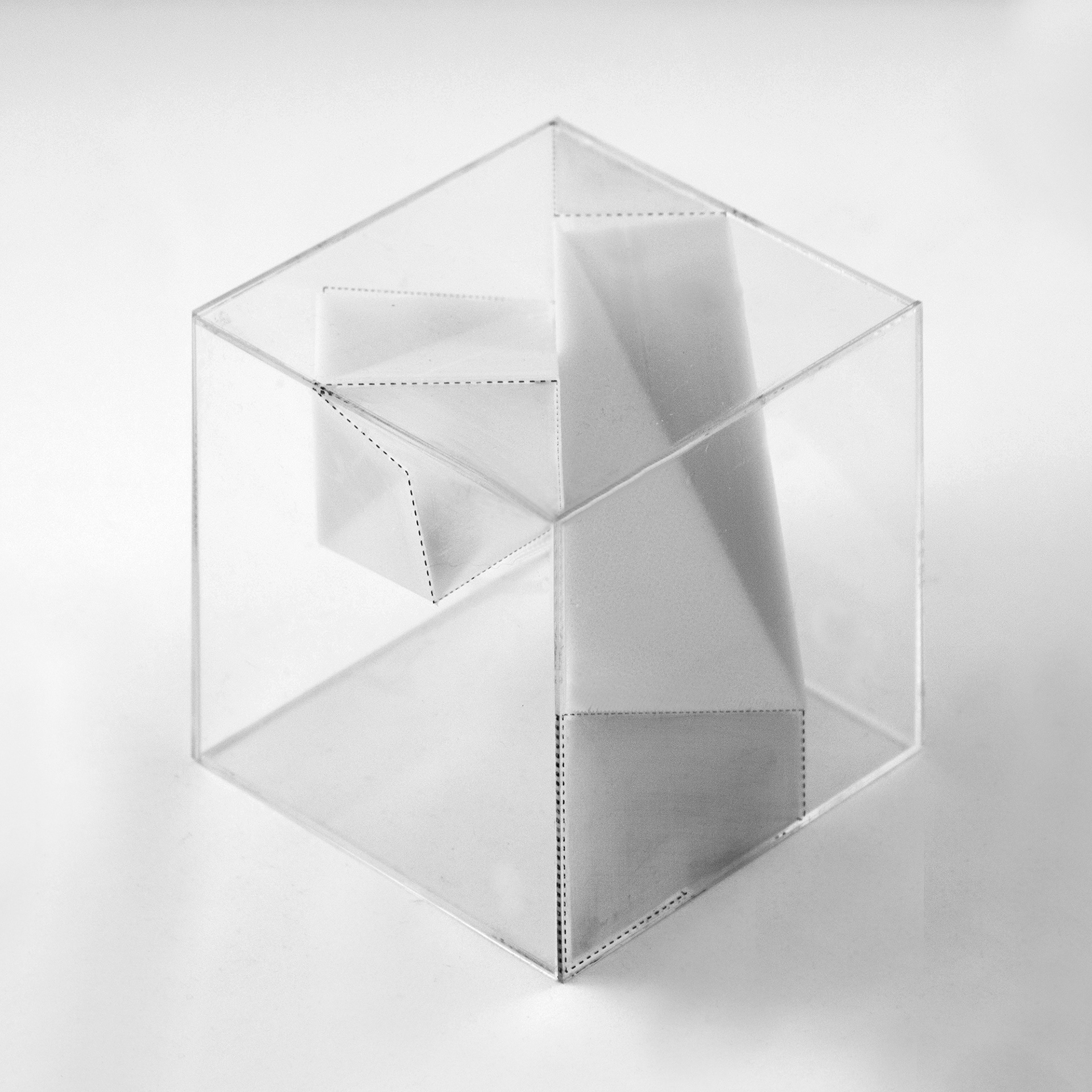

concept model
![elevation oblique](https://cdn.myportfolio.com/206b6f8e-c002-498f-849c-9b26de9e6ddb/48cbf45f-cf5a-484e-a402-b2b2dbc81777_rw_1200.jpg?h=e6af2ccaf0d9fe21a44e0673055e9033)

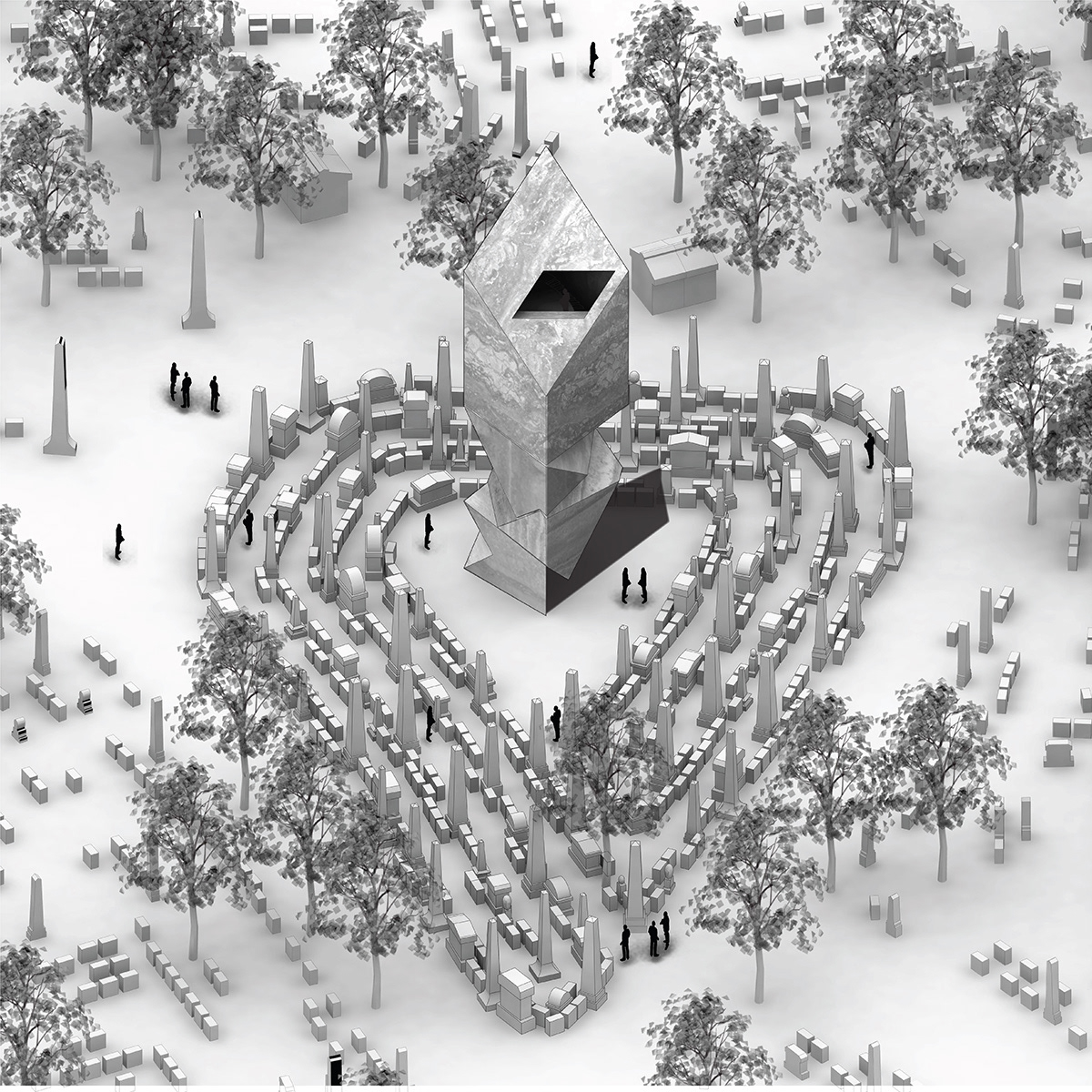

elevation oblique
![section oblique](https://cdn.myportfolio.com/206b6f8e-c002-498f-849c-9b26de9e6ddb/7fec64f1-474a-4a80-94ae-e415832160a7_rw_1200.jpg?h=88627fc5679f68f6b668934e1646433d)
section oblique
![perspective](https://cdn.myportfolio.com/206b6f8e-c002-498f-849c-9b26de9e6ddb/c092aec3-7475-4afc-9cbc-35bad01f9d5d_rw_1200.jpg?h=c0c3b91e014d06779119a5f4c9845766)

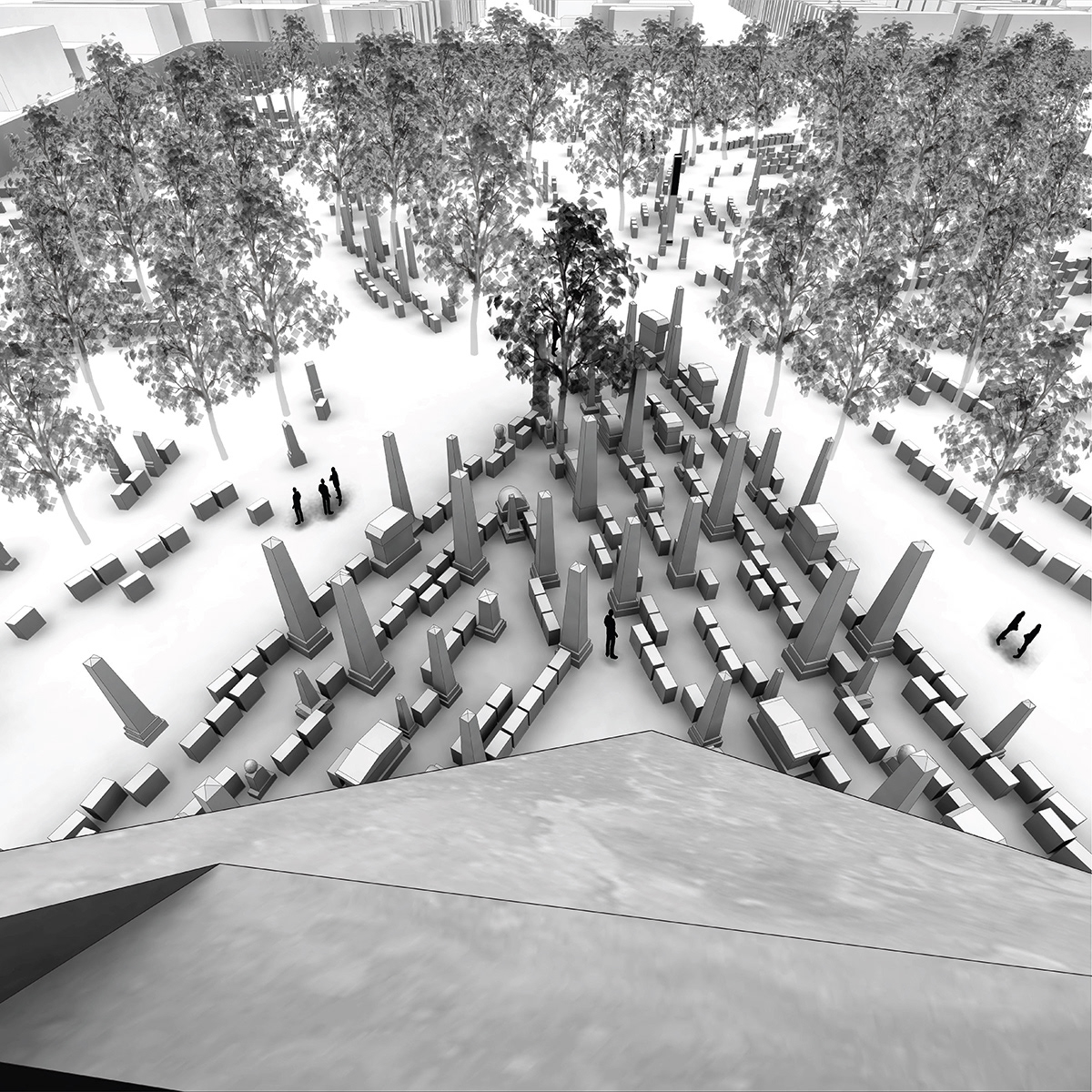

perspective
![](https://cdn.myportfolio.com/206b6f8e-c002-498f-849c-9b26de9e6ddb/f69ec63b-a211-4295-ac2a-af1503495e4d_rw_1920.jpg?h=65a1c28d239121c3eafdd2f72bed87d4)

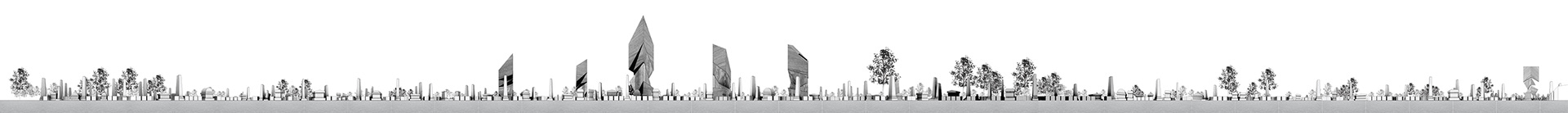

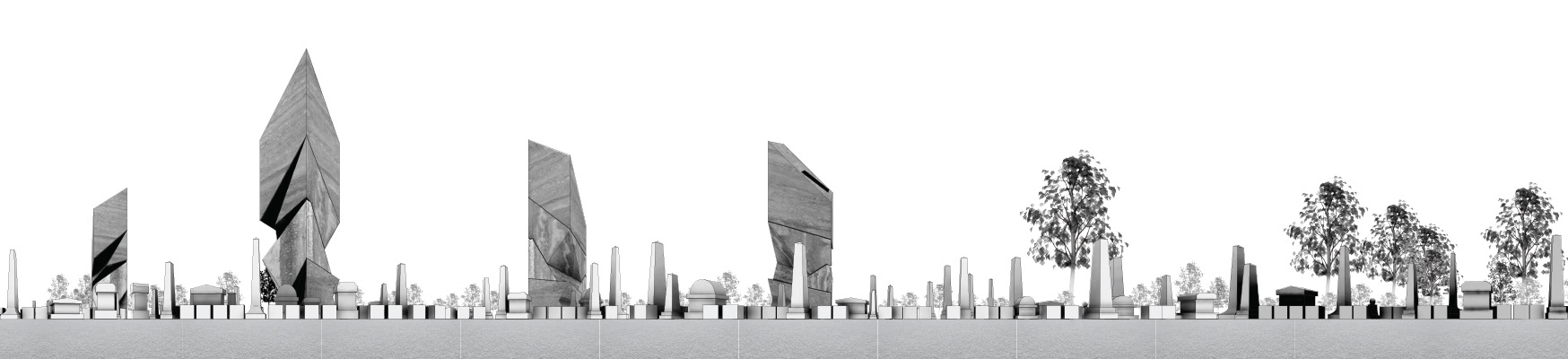

unraveled elevation
![](https://cdn.myportfolio.com/206b6f8e-c002-498f-849c-9b26de9e6ddb/c2721388-6d39-45ee-92b2-4f5508c4b277_rw_1920.jpg?h=c7baa51264eed8370bb7de99e7f55899)
![](https://cdn.myportfolio.com/206b6f8e-c002-498f-849c-9b26de9e6ddb/bca43438-0eaa-4c10-a7cd-69f04358cb05_rw_1920.jpg?h=05a2502b076618113b306cee820a470e)
![](https://cdn.myportfolio.com/206b6f8e-c002-498f-849c-9b26de9e6ddb/a094ef8d-42df-4eae-a252-ce609ef45877_rw_1920.jpg?h=37af01ab8198dbbefae06275658ff0b3)
![](https://cdn.myportfolio.com/206b6f8e-c002-498f-849c-9b26de9e6ddb/dad1a813-7d42-4cc0-9458-fa20bbd2b7b4_rw_1920.jpg?h=45a77966ba3a23d4641d0bb12dfea46f)
